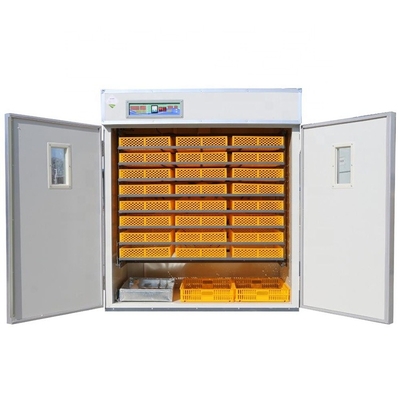

Chicken Egg Incubator /Chicken eggs incubator and hatcher / egg incubator of egg hatching machine
Machine Models Photos:
Production Description:
1. Digital displaying of temperature, humidity and turning frequency
2.Full automatically temperature and humidity controlling
3.Full automatically eggs turning
4.Full automatically alarming, cooling and ventilator
Machine Parameter:
| Model |
Size: L*W*H(M) |
Weight (KG) |
Material Thickness (CM) |
Power (W) |
Chicken egg (PCS) |
Duck egg (PCS) |
Goose egg (PCS) |
Pigeon egg (PCS) |
Quail egg (PCS) |
| CY88 | 0.7*0.57*0.8 |
35 |
5CM | 200W | 88 | 63 | 36 | 112 | 221 |
| CY176 | 0.7*0.57*0.9 | 40 | 5CM | 200W | 176 | 126 | 72 | 224 | 442 |
| CY264 | 0.7*0.57*1 | 45 | 5CM | 300W | 264 | 108 | 108 | 336 | 663 |
| CY352 | 0.7*0.57*1.1 | 55 | 5CM | 300W | 352 | 250 | 364 | 448 | 884 |
|
CY528 |
1*0.71*1 | 60 | 5CM | 400W | 528 | 378 | 216 | 672 | 1326 |
| CY880 | 1*0.71*1.3 | 75 | 5CM | 500W | 880 | 630 | 360 | 1120 | 2210 |
| CY1056 | 1*0.85*1.4 | 110 | 5CM | 600W | 1056 | 756 | 432 | 1344 | 2652 |
| CY1232 | 1*0.85*1.5 | 130 | 5CM | 600W | 1232 | 882 | 504 | 1568 | 3094 |
| CY1320 | 1*0.71*1.6 | 140 | 5CM | 600W | 1320 | 945 | 540 | 1680 | 3315 |
| CY1584 | 1.45*0.9*1.5 | 150 | 5CM | 600W | 1584 | 1134 | 648 | 2016 | 3978 |
| CY1848 | 1.45*0.9*1.6 | 160 | 5CM | 800W | 1848 | 1323 | 456 | 2352 | 4641 |
| CY2112 | 1.45*0.9*1.7 | 170 | 5CM | 800W | 2112 | 1512 | 864 | 2688 | 5304 |
| CY3168 | 1.75*0.9*1.8 | 180 | 5CM | 900W | 3168 | 2268 | 1296 | 4032 | 7956 |
| CY3520 | 1.75*0.9*2 | 190 | 5CM | 900W | 3520 | 2520 | 1440 | 4480 | 8840 |
| CY4224 | 1.8*1.07*1.9 | 220 | 5CM | 900W | 4224 | 3024 | 1728 | 5376 | 10128 |
| CY5280 | 1.8*1.2*2 | 260 | 5CM | 900W | 5280 | 3780 | 2160 | 6720 | 13260 |
| CY8448 | 1.9*1.9*2 | 450 | 5CM | 1500W | 8448 | 6048 | 3456 | 10752 | 21216 |
| CY9856 | 1.9*1.9*2.2 | 550 | 5CM | 1500W | 9586 | 7056 | 4032 | 12544 | 23632 |
| CY14784 | 2.8*1.9*2.2 | 700 | 5CM | 2000W | 14784 | 10584 | 6048 | 18816 | 37128 |
| CY16896 | 3.7*1.9*2.2 | 900 | 5CM | 2500W | 16896 | 12096 | 6912 | 21504 | 42432 |
| CY19712 | 3.7*1.9*2.5 | 1000 | 5CM | 2500W | 19712 |
14112 |
8064 | 25088 |
49504 |
Technique parameters:
1). Range of temperature display: 5~50°C
2). Precision of Temperature control: ±0.1°C
3). Range of humidity display: 0—99%RH
4). Precision of humidity display: 1%RH
5). QTY of output circuit: 7 (overheat, heat control, low temperature, egg turning in left & right direction, humidity control, alarm)
6). Output current: heat control, low temperature in 10A, others in 1A
7). Times of egg turning: Max record is 999 times.
8). Period of egg turning: adjustable between 0.1 and 99.9 hours (Fixed in 1.5 hours when delivered)
9). Time of egg turning: adjustable between 1 and 255 seconds (fixed in 180 seconds when delivered)
10). Period of ventilation: adjustable between 5 and 999 minutes (Fixed in zero when delivered, no ventilation)
11). Time of ventilation: adjustable between 0 and 999 seconds (Fixed in 30 second when delivered)
12). Length of measuring line: around 1.5meters
Details:
1. Automatic turning system tilting the eggs 45° Once per 90 minutes .According
your actual request, you can set turning interval time you need.
2. Big middle fan with automatic heating and roller humidifying system.
3. Backup emergency and alarming system for insurance using.
4. Automatic air cooling system and automatic ventilator.
5. Inside light.
6. Made of polyester, double wall construction for a perfect insulation.
7. Trolley egg-frame for easy operating, inside disinfecting and cleaning.
